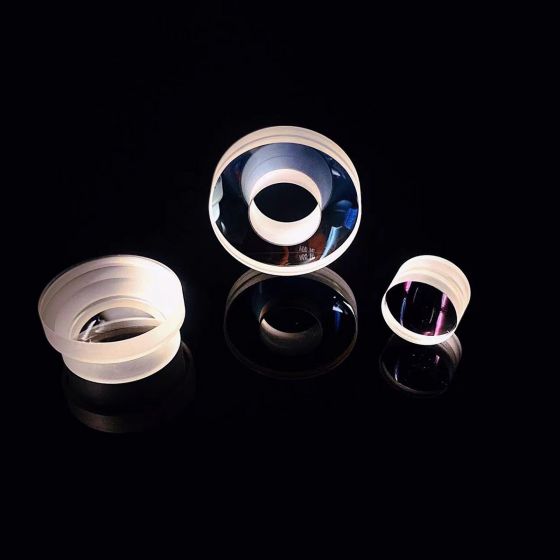

Achromatic lens is a lens designed to minimize chromatic aberration and spherical aberration.
Achromatic doublets are one of the simplest achromatic lenses, which are cemented achromats made of two different lenses.
Oplens offer achromatic doublets, cylindrical achromatic doublets, and air-spaced achromatic doublets, as well as achromatic triplets that allow for maximum aberration control. Of course, achromatic lenses can also be composed of multiple lenses, depending on their uses.
The achromatic lens with large aperture is usually separated and assembled in the frame with excellent comprehensive performance. Achromatic lenses are widely used. A multi-lens optical system usually consists of several achromatic lenses. High quality microscopic objective lens and photographic lens are all complex lens combination systems which eliminate both achromatic and other monochromatic aberrations.
Achromatic lenses focus colors at the same point, allowing the user to focus on the image. Compared to uncorrected singlets, achromatic lenses produce sharper images, making viewing easier and perceiving more accurate.
They revolutionize the way you image. Despite the ever-increasing quality of lenses, achromatic lenses remain a staple for scientific and non-scientific optical applications.
1. What is the difference between achromatic and apochromatic?
Achromatic lenses are corrected to focus two wavelengths in the same plane - typically red (~0.590 µm) and blue (~0.495 µm). Apochromats are designed to focus three colors on the same plane - typically red (~0.620 µm), green (~0.530 µm), and blue (~0.465 µm).
2.
What is an achromatic lens used for?
Lenses that are specifically designed to control the effects of chromatic aberration or aberrations (flaws in optical lenses that bring the focus of all colors to the same point of convergence) are called achromatic lenses. It is widely known as "achromatic"
3. How do achromatic lenses work?
An achromatic lens is a combination of concave and convex glass sheets that focus different color wavelengths in light onto a single plane. Each type of glass disperses colors in a different way - putting them together balances each other out and produces a crisp image.
Oplens can produce single layer or multi-layer anti-reflective films with all kinds of coating materials on both outside surfaces. Their performance is superior to that of all single element lenses.
In addition to our wide range of achromatic lenses, Oplens Optics also offers custom services.
You are welcome to contact us!
Parameters
| Material | Optical Glass |
| Surface Flatness | < λ/5 @ 633nm |
| Scratch/Dig | < 40/20 (both sides) |
| Eccentricity | ≤ 1arcmin |
| Focal Length Tolerance | < ± 1% |
| Diameter Tolerance | < + 0.00/ - 0.02mm |
| Thickness Tolerance | < ± 0.05 |
| Clear Aperture | ≥ 95% of diameter |
| Coating | AR OR BBAR |
| Diameter Range | 5~260mm |
Stock Products:
| Serial No. | Parts No. | Material | DIA | R1 | R2 | TC | F |
| 1 | B45N9237 | H-K51 | 45 | 36.73 | 127.35 | 12 | -9236.90 |
| 2 | B45N9237 | ZF51 | 45 | -127.35 | -53.44 | 5 | -9236.90 |
| 3 | B15N6530 | H-ZF6 | 15 | -27.542 | -23.605 | 2.8 | -6530.00 |
| 4 | B15N6530 | H-ZK11 | 15 | 23.605 | 23.605 | 7.8 | -6530.00 |
| 5 | B36N1867 | H-ZF6 | 36 | 110.79 | -29.054 | 3.04 | -1867.00 |
| 6 | B36N1867 | H-QK3L | 35.8 | 29.054 | 279 | 10 | -1867.00 |
| 7 | B17N498 | H-ZF6 | 17 | -9.911 | -44.06 | 7 | -498.00 |
| 8 | B17N498 | H-ZK3 | 16.8 | 44.06 | 18.42 | 10 | -498.00 |
| 9 | B16N458 | H-ZF7LA | 16 | 64.343 | 44.063 | 6.3 | -458.00 |
| 10 | B16N458 | H-LAF4 | 15.8 | -44.063 | -44.063 | 2.7 | -458.00 |
| 11 | B25.5N346 | H-ZK50 | 25.5 | 283.75 | 30.534 | 4.2 | -346.00 |
| 12 | B25.5N346 | H-ZF12 | 25.5 | -30.534 | 1E+13 | 2 | -346.00 |
| 13 | B17.6N318.6 | H-ZPK2 | 17.6 | 18.298 | 48.412 | 4 | -318.60 |
| 14 | B17.6N318.6 | H-ZLAF76 | 17.6 | -48.412 | -22.856 | 4.8 | -318.60 |
| 15 | B27N306 | H-ZF7LA | 27 | -46.639 | -35.721 | 15 | -306.00 |
| 16 | B27N306 | H-BAK2 | 26.8 | 35.721 | 32.7 | 13.05 | -306.00 |
| 17 | B34N232.6 | ZF4 | 34 | 1E+10 | 227.728 | 3 | -232.63 |
| 18 | B34N232.6 | K9 | 34 | -227.73 | -98.66 | 1.5 | -232.63 |
| 19 | B38.8N203 | H-K9L | 38.811 | -86.512 | -96.749 | 4.445 | -203.00 |
| 20 | B38.8N203 | F3 | 38.684 | 96.749 | 1E+12 | 5.588 | -203.00 |
| 21 | B19N203 | BAK7 | 19 | -227.73 | -67.45 | 1.5 | -202.91 |
| 22 | B19N203 | ZF6 | 19 | 67.45 | -274 | 2.6 | -202.91 |
| 23 | B11N201.8 | F4 | 11 | -12.82 | -9.02 | 1.2 | -201.80 |
| 24 | B11N201.8 | H-K9L | 11 | 9.02 | 11.61 | 5 | -201.80 |
| 25 | B31.2N173 | H-ZLAF50B | 31 | 167.28 | 28.439 | 6.55 | -173.00 |
| 26 | B31.2N173 | ZF10 | 31.2 | -28.439 | -46.27 | 1 | -173.00 |
| 27 | B23.5N169.3 | LAF3 | 23.5 | 24.17 | -99.83 | 4.5 | -169.30 |
| 28 | B23.5N169.3 | ZBAF52 | 23.5 | 99.83 | -16.46 | 2 | -169.30 |
| 29 | B20N157.7 | H-ZBAF20 | 20 | 20.6 | 23.461 | 7.2 | -157.70 |
| 30 | B20N157.7 | H-ZF52A | 20 | -23.461 | -18.76 | 4.53 | -157.70 |
| 31 | B17.6N157 | H-ZPK2 | 17.6 | 19.404 | 36.213 | 4.4 | -157.00 |
| 32 | B17.6N157 | H-ZF6 | 17.6 | -36.213 | -17.843 | 7.8 | -157.00 |
| 33 | B17N152.6 | H-LAK11 | 17 | 21.179 | 17.843 | 5 | -152.60 |
| 34 | B17N152.6 | H-ZF6 | 17 | -17.843 | -18.791 | 5 | -152.60 |
| 35 | B43N111.5 | H-FK61 | 43 | 27.233 | -109.04 | 13 | -111.50 |
| 36 | B43N111.5 | H-QF1 | 43 | 109.043 | -15.511 | 5 | -111.50 |
| 37 | B15N109 | H-LAF53 | 15 | 11.695 | 36.06 | 5 | -109.00 |
| 38 | B15N109 | H-ZF7LA | 15 | -36.06 | -8.511 | 2 | -109.00 |
| 39 | B17N105.9NEW | H-ZF6 | 17 | -10.069 | -25.41 | 1.2 | -105.90 |
| 40 | B17N105.9NEW | H-LAF53 | 17 | 25.41 | 14.555 | 5.3 | -105.90 |
| 41 | B17N105.9 | H-ZF6 | 17 | -10.069 | -25.41 | 1.2 | -105.90 |
| 42 | B17N105.9 | H-LAF53 | 17 | 25.41 | 14.555 | 5.3 | -105.90 |
| 43 | B21N91.8 | H-ZLAF68 | 21 | 11.854 | -43.96 | 6.6 | -91.80 |
| 44 | B21N91.8 | H-ZF88 | 21 | 43.96 | -7.449 | 1.5 | -91.80 |
| 45 | B38.5N89.2 | ZBaF5 | 38.5 | 81.75 | 27.94 | 15 | -89.19 |
| 46 | B38.5N89.2 | ZF7L | 38.5 | -81.75 | -15.92 | 9 | -89.19 |
| 47 | B22N86.5 | H-ZLAF68B | 22 | 13.35 | -38.55 | 5 | -86.50 |
| 48 | B22N86.5 | H-ZF88 | 22 | 38.55 | -9.036 | 2 | -86.50 |
| 49 | B17N85 | H-ZK6 | 16.8 | 21.2 | 41.498 | 5.4 | -85.00 |
| 50 | B17N85 | H-ZF12 | 17 | -41.498 | -16.38 | 6.8 | -85.00 |
| 51 | B20N77.6 | H-LAF53 | 20 | 16.144 | -30.34 | 3.4 | -77.60 |
| 52 | B20N77.6 | H-ZK6 | 20 | 30.34 | -9.727 | 1.4 | -77.60 |
| 53 | B25.4P77 | H-ZLAF68 | 25.35 | 183.81 | -49.148 | 0.71 | -77.00 |
| 54 | B25.4P77 | H-LAK10 | 25.35 | 49.148 | 50.48 | 3.96 | -77.00 |
| 55 | B18N73.9 | H-QK3L | 15 | 12.647 | 18.03 | 6 | -73.90 |
| 56 | B18N73.9 | H-ZF7LA | 18 | -18.03 | -18.03 | 1.8 | -73.90 |
| 57 | B26N63.6 | H-BAK4 | 26 | 18 | 829 | 7.1 | -63.57 |
| 58 | B26N63.6 | QF3 | 26 | -829 | -10.17 | 2 | -63.57 |
| 59 | B28.6N63.1 | H-ZF3 | 28.6 | 361.95 | 33.782 | 5.588 | -63.10 |
| 60 | B28.6N63.1 | H-BAK6 | 28.6 | -33.782 | -24.714 | 6.096 | -63.10 |
| 61 | B12.5N54 | H-ZK3 | 12.5 | -48.395 | -26 | 1 | -53.99 |
| 62 | B12.5N54 | H-F4 | 12.5 | 26 | -83.68 | 1.6 | -53.99 |
| 63 | B27N50.6 | F4 | 27 | -272 | 28.6 | 8 | -50.56 |
| 64 | B27N50.6 | K9 | 27 | -28.6 | -24.6 | 5 | -50.56 |
| 65 | B18N49 | H-K9L | 18 | 21.53 | 33.989 | 8 | -49.00 |
| 66 | B18N49 | H-ZF13 | 18 | -33.989 | -16.666 | 8 | -49.00 |
| 67 | B12N44.2 | H-ZBAF3 | 12 | 8.85 | 14.56 | 4.7 | -44.20 |
| 68 | B12N44.2 | H-ZF12 | 12 | -14.56 | -6.11 | 1.5 | -44.20 |
| 69 | B15N43 | H-FK61 | 15 | 15.3 | 15.3 | 5 | -43.00 |
| 70 | B15N43 | H-ZF62 | 15 | -15.3 | -26.36 | 2 | -43.00 |
| 71 | B18N37.2 | H-ZBAF3 | 18 | 19.907 | 22.131 | 6 | -37.20 |
| 72 | B18N37.2 | H-ZF6 | 18 | -22.131 | -8.954 | 14.4 | -37.20 |
| 73 | B15P35.4 | H-LAK51 | 15 | 54.28 | 45.64 | 2.6 | -35.40 |
| 74 | B15P35.4 | H-ZF50 | 15 | -45.64 | 43.506 | 2.6 | -35.40 |
| 75 | B9N34.6 | H-QK3 | 9 | -11.5 | -11 | 1.5 | -34.60 |
| 76 | B9N34.6 | H-QF50 | 9 | 11 | 138.401 | 2.5 | -34.60 |
| 77 | B23N34.3 | H-ZLAF50B | 23 | 15.37 | 60.25 | 7.1 | -34.30 |
| 78 | B23N34.3 | H-ZF62 | 23 | -60.25 | -8.433 | 2.44 | -34.30 |
| 79 | B12.5N29 | H-ZK3 | 12.5 | -33 | -11.5 | 1 | -28.95 |
| 80 | B12.5N29 | H-F4 | 12.5 | 11.5 | -33 | 2.3 | -28.95 |
| 81 | B15.5N28.8 | ZK9 | 15.5 | -32.77 | -17.3 | 1.2 | -28.80 |
| 82 | B15.5N28.8 | ZF6 | 15.5 | 17.3 | -32.77 | 2.4 | -28.80 |
| 83 | B8N24.3 | K9 | 8 | 67.92 | -6.194 | 1.5 | -24.27 |
| 84 | B8N24.3 | F4 | 8 | 6.194 | -9.204 | 1.5 | -24.27 |
| 85 | B28N23.4 | H-ZK11 | 28 | 24.1 | 90.806 | 7.5 | -23.40 |
| 86 | B28N23.4 | H-ZF6 | 28 | -90.806 | -7.656 | 13 | -23.40 |
| 87 | B13.5N22.1 | ZK9 | 13.5 | -57.41 | -10.03 | 1 | -22.14 |
| 88 | B13.5N22.1 | ZF7 | 13.5 | -15.136 | 10.03 | 2.6 | -22.14 |
| 89 | B15N21.8 | K9L | 15 | -18.621 | -10.35 | 1.2 | -21.80 |
| 90 | B15N21.8 | ZF6 | 15 | 10.35 | -18.621 | 3 | -21.80 |
| 91 | B25.2N19.6 | H-ZLAF50B | 21 | -18.32 | 15.75 | 6 | -19.60 |
| 92 | B25.2N19.6 | H-ZF4 | 25.2 | -15.75 | -70.552 | 4 | -19.60 |
| 93 | B16N19.4 | ZF7 | 15.9 | -18.03 | 10.646 | 2.9 | -19.35 |
| 94 | B16N19.4 | QF1 | 16 | -18.03 | -10.646 | 1 | -19.35 |
| 95 | B15.8N19.3 | H-QF1 | 15.849 | -8.976 | -11.854 | 4.922 | -19.30 |
| 96 | B15.8N19.3 | H-ZF3 | 15.722 | 11.854 | -121.31 | 4.688 | -19.30 |
| 97 | B18N15.4 | H-K9L | 18 | -37.5 | 1E+12 | 1.3 | -15.40 |
| 98 | B18N15.4 | H-ZF3 | 15 | 1E+11 | -14.421 | 1 | -15.40 |
| 99 | B9N11.6 | H-K9L | 9 | -7.809 | -5.45 | 6.2 | -11.60 |
| 100 | B9N11.6 | H-F4 | 8.8 | 5.45 | -19.148 | 3.6 | -11.60 |
| 101 | B7N9.7 | H-ZK6 | 7 | -7.667 | -3.821 | 3.8 | -9.70 |
| 102 | B7N9.7 | ZBAF4 | 7 | 3.821 | -23.744 | 5.5 | -9.70 |
| 103 | B10.5N6.6 | SF56A | 10.5 | -13.555 | -4.9018 | 1.5 | -6.60 |
| 104 | B10.5N6.6 | N-LASF44 | 6 | 4.90177 | -9.2621 | 2.5 | -6.60 |
| 105 | B8P10.6 | N-LAK22 | 6.5 | 9.63866 | 3.59664 | 4 | 10.60 |
| 106 | B8P10.6 | SF57 | 8 | -3.5966 | 9.63866 | 1.5 | 10.60 |
| 107 | B14.6P15.9 | ZK9 | 14.4 | 11.749 | 11.749 | 5.7 | 15.92 |
| 108 | B14.6P15.9 | ZF7 | 14.6 | 27.8 | -11.749 | 1 | 15.92 |
| 109 | B16P19.9 | ZK9 | 16 | 14.622 | 14.622 | 6 | 19.90 |
| 110 | B16P19.9 | ZF7 | 16 | 35.73 | -14.622 | 1.2 | 19.90 |
| 111 | B12.2P20.8 | ZK3 | 12.2 | 13.397 | 9.29 | 5 | 20.78 |
| 112 | B12.2P20.8 | ZF6 | 12.2 | 32.66 | -9.29 | 1 | 20.78 |
| 113 | B15P21.2 | ZK11 | 14.5 | 17.498 | 10.03 | 6 | 21.22 |
| 114 | B15P21.2 | ZF7L | 15 | -10.03 | 27.4 | 1.1 | 21.22 |
| 115 | B12.2P21.5 | BaK4 | 12.2 | 15.453 | 9.247 | 4.4 | 21.49 |
| 116 | B12.2P21.5 | ZF6 | 12.2 | 22.03 | -9.247 | 1 | 21.49 |
| 117 | B12P21.7 | ZF7 | 12 | 1E+100 | -9.772 | 1 | 21.68 |
| 118 | B12P21.7 | BaF5 | 12 | 9.772 | 9.772 | 5.9 | 21.68 |
| 119 | B12.7P22 | H-K9L | 12.7 | 21.674 | 8.465 | 5 | 22.00 |
| 120 | B12.7P22 | H-ZF2 | 12.7 | -8.465 | 15.745 | 2.5 | 22.00 |
| 121 | B12.7P22 | H-K9L | 12.7 | 21.674 | 8.465 | 5 | 22.00 |
| 122 | B12.7P22 | H-ZF2 | 12.7 | -8.465 | 15.745 | 2.5 | 22.00 |
| 123 | B9P22.8 | S-BAM4 | 9 | 19.248 | 8.77 | 3.3 | 22.80 |
| 124 | B9P22.8 | H-ZF13 | 9 | -8.77 | 23.19 | 1 | 22.80 |
| 125 | B12.7P23.9 | H-LAK10 | 12.7 | 20.99 | 9.911 | 5 | 23.90 |
| 126 | B12.7P23.9 | H-ZF7LA | 12.7 | -9.911 | 28.847 | 1.5 | 23.90 |
| 127 | B15.5P23.9 | ZK9 | 15.3 | 11.455 | 11.455 | 7.1-0.1 | 23.90 |
| 128 | B15.5P23.9 | ZF7 | 15.5 | 1E+100 | -11.455 | 1.2-0.1 | 23.90 |
| 129 | B17P24.3 | H-LAK51 | 15 | 9.772 | 50.58 | 6 | 24.34 |
| 130 | B17P24.3 | QF5 | 17 | 32.58 | -9.772 | 3 | 24.34 |
| 131 | B28.2P24.6 | H-QK3L | 28.2 | -93.929 | -54.598 | 1 | 24.60 |
| 132 | B28.2P24.6 | H-ZLAF55C | 27.8 | 54.598 | 21.15 | 8.13 | 24.60 |
| 133 | B12.5P24.9 | ZK3 | 12.3 | 13.996 | 9.817 | 5 | 24.93 |
| 134 | B12.5P24.9 | ZF6 | 12.5 | 50.7 | -9.817 | 1 | 24.93 |
| 135 | B12.5P25.1 | ZK5 | 12.5 | 15.241 | 9.247 | 5 | 25.08 |
| 136 | B12.5P25.1 | ZF5 | 12.5 | 52.97 | -9.247 | 1.2 | 25.08 |
| 137 | B12P27.8 | H-LAK51 | 12 | 13.74 | 11.272 | 4.4 | 27.80 |
| 138 | B12P27.8 | H-ZF52A | 12 | -11.272 | -222.17 | 1.2 | 27.80 |
| 139 | B15P28.5 | H-LAK53A | 14.8 | 52.5 | 19.121 | 3.6 | 28.50 |
| 140 | B15P28.5 | H-F13 | 15 | -19.121 | 42.11 | 1.5 | 28.50 |
| 141 | B7.4P30（切方） | H-K9L | 7.4 | 18.15 | 13.428 | 2.8 | 30.00 |
| 142 | B7.4P30（切方） | ZF2 | 7.4 | -13.428 | 39.6 | 0.9 | 30.00 |
| 143 | B12.7P30 | H-K9L | 12.7 | 18.408 | 13.737 | 4 | 30.00 |
| 144 | B12.7P30 | H-ZF2 | 12.7 | -13.737 | 38.756 | 1.5 | 30.00 |
| 145 | B15P30 | H-ZBAF52 | 15 | 20.72 | 13.17 | 6 | 30.00 |
| 146 | B15P30 | H-ZF4 | 15 | -13.17 | 128.44 | 1.5 | 30.00 |
| 147 | B17P30 | ZF6 | 17 | 32.37 | -11.5 | 2.5 | 30.04 |
| 148 | B17P30 | BAF4 | 17 | 22.23 | 11.5 | 6 | 30.04 |
| 149 | B20.2P30.9 | ZF5 | 20.2 | 1E+100 | -15.596 | 1.5 | 30.88 |
| 150 | B20.2P30.9 | ZK6 | 20.2 | 15.596 | 15.596 | 9 | 30.88 |
| 151 | B14.7P32.9 | ZF7 | 14.7 | -116.95 | -9.772 | 1 | 32.89 |
| 152 | B14.7P32.9 | ZK9 | 14.7 | 12.246 | 9.772 | 6.8 | 32.89 |
| 153 | B22P33.9 | ZK4 | 22 | 21.58 | 18.535 | 8 | 33.88 |
| 154 | B22P33.9 | ZF6 | 22 | 260.6 | -21.58 | 1.8 | 33.88 |
| 155 | B14P34.1 | ZF6 | 14 | 1E+100 | -8.954 | 1 | 34.14 |
| 156 | B14P34.1 | ZK7 | 14 | 14.388 | 8.954 | 6.1 | 34.14 |
| 157 | B11.7P34.3 | ZF13 | 11.7 | -36.5 | -9.708 | 4.4 | 34.27 |
| 158 | B11.7P34.3 | ZK3 | 11.7 | 9.708 | 9.708 | 4.9 | 34.27 |
| 159 | B18P34.7 | H-ZF7L | 18 | -299.94 | -12.8 | 1 | 34.68 |
| 160 | B18P34.7 | H-ZK9 | 18 | 12.8 | 14.67 | 8.1 | 34.68 |
| 161 | B22P34.7 | LAK7 | 21.8 | 30.41 | 30.41 | 5.2 | 34.75 |
| 162 | B22P34.7 | ZF52 | 22 | -30.41 | 80.17 | 1.5 | 34.75 |
| 163 | B16P34.8 | ZF13 | 16 | 43.067 | -27.72 | 2 | 34.80 |
| 164 | B16P34.8 | H-ZLAF50B | 15.6 | 27.72 | 77.04 | 3.5 | 34.80 |
| 165 | B14.2P35.8 | H-ZLAF52 | 14.2 | 22.285 | -11.449 | 1.5 | 35.80 |
| 166 | B14.2P35.8 | H-ZK3 | 14 | 11.449 | 53.416 | 4.4 | 35.80 |
| 167 | B12.5P36 | K9 | 12.5 | 36.39 | 11.09 | 3.7 | 36.11 |
| 168 | B12.5P36 | ZF1 | 12.5 | -11.09 | 25.06 | 1.5 | 36.11 |
| 169 | B14P37.7 | H-ZK10L | 12 | 40.472 | 7.994 | 4.24 | 37.70 |
| 170 | B14P37.7 | H-ZF7LA | 17 | -7.994 | 23.55 | 2.05 | 37.70 |
| 171 | B16P37.8 | ZK9 | 16 | 22.91 | 14.01 | 5.5 | 37.84 |
| 172 | B16P37.8 | ZF6 | 16 | -14.01 | 83.68 | 1.2 | 37.84 |
| 173 | B18P38.3 | H-ZF7L | 18 | 1E+14 | -12.9 | 1 | 38.34 |
| 174 | B18P38.3 | H-ZK9 | 18 | 12.9 | 16.385 | 7.6 | 38.34 |
| 175 | B20P38.3 | ZK6 | 19 | 26.543 | 15.776 | 6 | 38.34 |
| 176 | B20P38.3 | ZF6 | 20 | 60.53 | -15.776 | 1.4 | 38.34 |
| 177 | B12P39.1 | H-BAK7 | 12 | 27.71 | 15 | 2.75 | 39.10 |
| 178 | B12P39.1 | H-ZF1 | 12 | -15 | 61.17 | 1 | 39.10 |
| 179 | B15.5P39.1 | ZBAF1 | 15.2 | 49.92 | 15.4 | 4.1 | 39.14 |
| 180 | B15.5P39.1 | H-ZF2 | 15.5 | -15.4 | 39.69 | 1.75 | 39.14 |
| 181 | B13P39.6 | H-ZF2 | 13 | -30.269 | -14.791 | 3 | 39.60 |
| 182 | B13P39.6 | H-ZK11 | 13 | 14.791 | 14.791 | 7.7 | 39.60 |
| 183 | B20P40 | K9 | 20 | 22.647 | 18.679 | 6.7 | 40.00 |
| 184 | B20P40 | ZF2 | 20 | -18.679 | 61.313 | 1.8 | 40.00 |
| 185 | B13.5P40 | H-ZF13 | 13.5 | 47.801 | -16.555 | 1.4 | 40.00 |
| 186 | B13.5P40 | H-ZBAF52 | 13.5 | 16.555 | 42.225 | 3.4 | 40.00 |
| 187 | B14.8P40.5 | ZF7 | 14.8 | 270 | -11.9 | 1.5 | 40.47 |
| 188 | B14.8P40.5 | ZK3 | 14.8 | 11.9 | 15.54 | 5.6 | 40.47 |
| 189 | B21.4P41.6 | ZF6 | 21.4 | -133.66 | -17.989 | 1.8 | 41.62 |
| 190 | B21.4P41.6 | ZK9 | 21.4 | 17.989 | 17.989 | 9 | 41.62 |
| 191 | B22P42 | H-LAF3B | 22 | 36.98 | 15.276 | 7.5 | 42.00 |
| 192 | B22P42 | H-F5 | 22 | -15.276 | -161.8 | 1 | 42.00 |
| 193 | B16.8P42.4 | H-BAK2 | 16.4 | 34.973 | 16.484 | 4.6 | 42.40 |
| 194 | B16.8P42.4 | H-ZF11 | 16.8 | -16.484 | 38.198 | 1.6 | 42.40 |
| 195 | B11.2P42.5 | K9 | 11.2 | 43.26 | 10.443 | 3 | 42.50 |
| 196 | B11.2P42.5 | ZF1 | 11.2 | -10.443 | 26.55 | 1 | 42.50 |
| 197 | B18P42.9 | H-ZF6 | 18 | 155.62 | -33.525 | 1 | 42.90 |
| 198 | B18P42.9 | H-ZLAF50B | 18 | 33.525 | 46.6 | 3.3 | 42.90 |
| 199 | B18P43.5 | H-ZF7L | 18 | -217.9 | -13.889 | 1 | 43.55 |
| 200 | B18P43.5 | H-ZK9 | 18 | 13.889 | 16.72 | 7.2 | 43.55 |
| 201 | B14P43.6 | H-ZF7L | 14 | -140.05 | -9.2 | 1.5 | 43.65 |
| 202 | B14P43.6 | H-ZK3 | 14 | 9.2 | 12.702 | 6.6 | 43.65 |
| 203 | B12N44.2 | H-ZBAF3 | 12 | 8.85 | 14.56 | 4.7 | 44.20 |
| 204 | B12N44.2 | H-ZF12 | 12 | -14.56 | -6.11 | 1.5 | 44.20 |
| 205 | B12.5P44.2 | K9 | 12 | 13.99 | 28.44 | 3.8 | 44.22 |
| 206 | B12.5P44.2 | H-ZF6 | 12.5 | 32.2 | -13.99 | 1.21 | 44.22 |
| 207 | B14.2P44.8 | ZF13 | 14.2 | -45 | -11.9 | 2 | 44.74 |
| 208 | B14.2P44.8 | ZK3 | 14.2 | 11.9 | 11.9 | 5.7 | 44.74 |
| 209 | B11.1P45 | K9 | 11.1 | 31.6 | 18 | 3.5 | 44.99 |
| 210 | B11.1P45 | ZF1 | 11.1 | -18 | 48 | 1.5 | 44.99 |
| 211 | B9P45.5 | H-K9L | 9 | 31.896 | 20.828 | 3 | 45.50 |
| 212 | B9P45.5 | H-F4 | 9 | -20.828 | 55.85 | 2.5 | 45.50 |
| 213 | B10P46 | H-ZF7LA | 10 | 21.211 | -9 | 2.5 | 46.00 |
| 214 | B10P46 | H-LAK10 | 10 | 9 | 1E+11 | 4.5 | 46.00 |
| 215 | B25.5P46.5 | LAK2 | 25.5 | 37.07 | 37.07 | 6.3 | 46.48 |
| 216 | B25.5P46.5 | ZF7L | 25.5 | -37.07 | 128.53 | 2.3 | 46.48 |
| 217 | B23P47.3 | BaK2 | 23 | 29.24 | 29.24 | 6.1 | 47.28 |
| 218 | B23P47.3 | ZF7 | 23 | 66.37 | -29.24 | 2 | 47.28 |
| 219 | B18P47.5 | H-ZF13 | 18 | -900 | -14.01 | 1 | 47.52 |
| 220 | B18P47.5 | H-ZK3 | 18 | 14.01 | 17.5 | 7 | 47.52 |
| 221 | B13.1P47.7 | K9 | 13.1 | 33.525 | 19.01 | 3.5 | 47.67 |
| 222 | B13.1P47.7 | ZF1 | 13.1 | -19.01 | 50.77 | 1.5 | 47.67 |
| 223 | B14.2P48 | H-ZLAF66 | 14.2 | 48.95 | -14.658 | 1.5 | 48.00 |
| 224 | B14.2P48 | H-ZK3 | 14 | 14.658 | 30.837 | 5 | 48.00 |
| 225 | B27P48.2 | ZBAF20 | 27 | 35 | 35 | 6.9 | 48.25 |
| 226 | B27P48.2 | ZF52 | 27 | -35 | 170.22 | 2 | 48.25 |
| 227 | B27P48.3 | ZBAF3 | 27 | 36.81 | 36.81 | 6.6 | 48.35 |
| 228 | B27P48.3 | ZF7L | 27 | -36.81 | 111.94 | 1.8 | 48.35 |
| 229 | B28P48.7 | K9 | 28 | 30.13 | 23.01 | 9 | 48.70 |
| 230 | B28P48.7 | F3 | 28 | -23.01 | 75.01 | 1.5 | 48.70 |
| 231 | B18P48.7 | H-ZF7LA | 18 | 110.66 | -51.05 | 1.8 | 48.70 |
| 232 | B18P48.7 | H-LAK3 | 18 | 51.05 | 51.05 | 3 | 48.70 |
| 233 | B26P48.9 | ZF1 | 26 | 62.23 | -19.59 | 2 | 48.89 |
| 234 | B26P48.9 | ZK3 | 26 | 19.59 | 42.95 | 8.5 | 48.89 |
| 235 | B20P49 | H-ZF7LA | 20 | 1E+13 | -23.55 | 1.4 | 49.00 |
| 236 | B20P49 | H-LAK2 | 20 | 1E+13 | 14.421 | 5.6 | 49.00 |
| 237 | B26P49.6 | LAK1 | 25.8 | 48.87 | 28.77 | 6 | 49.57 |
| 238 | B26P49.6 | ZF7 | 26 | 1E+100 | -48.87 | 2 | 49.57 |
| 239 | B12.7P50 | H-K9L | 12.7 | 21.44 | 18.91 | 3.5 | 50.00 |
| 240 | B12.7P50 | H-F2 | 12.7 | -18.91 | 772.6 | 1.5 | 50.00 |
| 241 | B16P50.3 | H-ZF6 | 16 | -67.7 | -11.17 | 1.2 | 50.26 |
| 242 | B16P50.3 | H-ZK3 | 16 | 11.17 | 14.369 | 7 | 50.26 |
| 243 | B26P51.3 | H-F1 | 26 | 48.891 | -17.455 | 4 | 51.30 |
| 244 | B26P51.3 | H-ZLAF50B | 24 | 17.455 | -180.135 | 6 | 51.30 |
| 245 | B22P52.9 | H-LAK3 | 22 | 16.144 | 92.68 | 6.5 | 52.90 |
| 246 | B22P52.9 | H-ZF7LA | 22 | -92.68 | -24.15 | 1 | 52.90 |
| 247 | B22P53.3 | ZK3 | 20.5 | 17.55 | 17.55 | 7.9 | 53.30 |
| 248 | B22P53.3 | ZF7L | 22 | -143.22 | -17.55 | 2 | 53.30 |
| 249 | B14.8P54 | ZF7 | 14.8 | 230 | -14.5 | 1.5 | 54.01 |
| 250 | B14.8P54 | ZK3 | 14.8 | 14.5 | 20.3 | 4.5 | 54.01 |
| 251 | B13P54.2 | H-K9L | 13 | 50 | 17.498 | 3 | 54.20 |
| 252 | B13P54.2 | H-F4 | 13 | -17.498 | 43.536 | 1.5 | 54.20 |
| 253 | B21.5P56.2 | H-ZF7L | 21.5 | 1E+11 | -14.02 | 1.5 | 56.22 |
| 254 | B21.5P56.2 | H-ZK9 | 21.5 | 14.02 | 21.6 | 9.6 | 56.22 |
| 255 | B20N56.8 | H-LAF3B | 19.9 | 12.88 | 77.62 | 6.23 | 56.80 |
| 256 | B20N56.8 | H-ZF13 | 19.98 | -77.62 | -7.943 | 1.09 | 56.80 |
| 257 | B18P57.9 | ZF7 | 18 | -83.623 | -13.395 | 1.5 | 57.92 |
| 258 | B18P57.9 | ZK9 | 18 | 16.955 | 13.395 | 7.5 | 57.92 |
| 259 | B26P58.5 | H-ZF7L | 26 | -900 | -19.8 | 1.3 | 58.52 |
| 260 | B26P58.5 | H-ZK9 | 26 | 19.8 | 24.2 | 10.3 | 58.52 |
| 261 | B12.5P60 | H-K9L | 12.5 | 36.51 | 26.33 | 3.5 | 60.00 |
| 262 | B12.5P60 | H-ZF2 | 12.5 | -26.33 | 78.35 | 1.5 | 60.00 |
| 263 | B26.5P62 | K9 | 26.5 | 44.77 | 39.17 | 6.1 | 62.04 |
| 264 | B26.5P62 | ZF1 | 26.5 | 105.68 | -44.77 | 2.3 | 62.04 |
| 265 | B45P71.8 | H-QF50 | 45 | 57.905 | 28.5 | 18 | 71.80 |
| 266 | B45P71.8 | H-ZLAF75A | 45 | -28.5 | 58.8 | 3.6 | 71.80 |
| 267 | B22.5P73.9 | K9 | 22 | 17.989 | 17.989 | 9 | 73.89 |
| 268 | B22.5P73.9 | ZF6 | 22.5 | -147 | -17.989 | 2 | 73.89 |
| 269 | B13P74.8 | H-K9L | 13 | 79.25 | 22.86 | 4 | 74.84 |
| 270 | B13P74.8 | H-F4 | 13 | -22.86 | 53.95 | 1 | 74.84 |
| 271 | B21.5P74.9 | H-LAK3 | 21.5 | 15.776 | 229.1 | 5.6 | 74.90 |
| 272 | B21.5P74.9 | H-ZF3 | 21.5 | -229.1 | -16.827 | 1.7 | 74.90 |
| 273 | B30P75 | H-K9L | 30 | 45.7 | 34.43 | 7.8 | 75.00 |
| 274 | B30P75 | H-ZF2 | 30 | -34.43 | 100.23 | 2.1 | 75.00 |
| 275 | B15P75.4 | BAF3 | 15 | 29.7 | 15.596 | 4 | 75.41 |
| 276 | B15P75.4 | QF50 | 15 | -15.596 | -87.9 | 1.8 | 75.41 |
| 277 | B27P76 | ZF7 | 27 | 1E+100 | -27.193 | 2 | 75.66 |
| 278 | B27P76 | BAK7 | 27 | 27.193 | 27.193 | 8.8 | 75.66 |
| 279 | B28.5P79.2 | ZF7L | 26 | -97.74 | -97.74 | 1.75 | 76.19 |
| 280 | B28.5P79.2 | BaK7 | 28.5 | 97.74 | 25.23 | 7 | 76.19 |
| 281 | B46P76.2 | H-LAK4L | 44 | 121.34 | 26.36 | 18 | 76.20 |
| 282 | B46P76.2 | H-ZLAF75A | 46 | -26.36 | 50 | 5 | 76.20 |
| 283 | B26P76.5 | H-ZF7LA | 26 | 34.88 | -18.197 | 1.8 | 76.50 |
| 284 | B26P76.5 | H-LAF53 | 22 | 18.197 | -100.93 | 6 | 76.50 |
| 285 | B26P77.3 | K9 | 25.9 | 23.82 | 23.82 | 9 | 77.26 |
| 286 | B26P77.3 | ZF6 | 26 | 1E+100 | -23.82 | 2.5 | 77.26 |
| 287 | B33P77.4 | H-LAK52 | 33 | 52.2042 | 45.2624 | 9 | 77.40 |
| 288 | B33P77.4 | H-ZF52A | 33 | -45.262 | 566.909 | 2.4 | 77.40 |
| 289 | B33P77.4 | H-LAK52 | 33 | 52.2042 | 45.2624 | 9 | 77.40 |
| 290 | B33P77.4 | H-ZF52A | 33 | -45.262 | 566.909 | 2.4 | 77.40 |
| 291 | B27P78.9 | H-ZF4 | 27 | -60 | -60 | 2 | 78.91 |
| 292 | B27P78.9 | H-BAK4 | 27 | 60 | 21.56 | 7.2 | 78.91 |
| 293 | B21P80 | H-KF6 | 21 | 65.77 | 33.62 | 5.5 | 80.00 |
| 294 | B21P80 | H-ZF52A | 20 | -33.62 | 58.27 | 2 | 80.00 |
| 295 | B23P80.1 | K9 | 23 | 48.87 | 32.96 | 5.5 | 80.09 |
| 296 | B23P80.1 | F4 | 23 | 119.12 | -32.96 | 2.5 | 80.09 |
| 297 | B16P80.4 | H-ZBAF5 | 16 | 62.907 | 12 | 5 | 80.40 |
| 298 | B16P80.4 | H-ZF2 | 16 | -12 | 339.583 | 2.5 | 80.40 |
| 299 | B26.5P81 | H-K9L | 26.5 | 52.7 | 38.63 | 5.5 | 81.03 |
| 300 | B26.5P81 | H-LAF4 | 26.5 | -38.63 | 86.21 | 2 | 81.03 |
| 301 | B30.5P81.4 | F4 | 30.5 | -268 | -39.2 | 3 | 81.43 |
| 302 | B30.5P81.4 | ZK3 | 30.5 | 39.2 | 39.2 | 10 | 81.43 |
| 303 | B9P81.9 | ZF7L | 9 | 13.765 | -6.871 | 3.2 | 81.90 |
| 304 | B9P81.9 | ZF2 | 9 | 6.871 | -15.075 | 10 | 81.90 |
| 305 | B40P83 | H-ZBAF52 | 40 | 59.05 | 65 | 8.5 | 83.00 |
| 306 | B40P83 | H-ZF4 | 40 | -65 | 435.85 | 4 | 83.00 |
| 307 | B22.8P83.6 | K9 | 22.8 | 51.52 | 33.42 | 4.5 | 83.55 |
| 308 | B22.8P83.6 | F1 | 22.8 | 130.02 | -33.42 | 1.5 | 83.55 |
| 309 | B25P84.1 | ZF52 | 25 | -199.99 | -26.1 | 2 | 84.11 |
| 310 | B25P84.1 | ZK7 | 25 | 26.1 | 26.1 | 7.9 | 84.11 |
| 311 | B34P84.3 | H-ZBAF50 | 34 | 112.24 | 37.98 | 8 | 84.34 |
| 312 | B34P84.3 | ZF7 | 34 | -168.1 | -112.24 | 2.5 | 84.34 |
| 313 | B30.5P84.5 | H-ZK9 | 30 | 22.579 | 52.875 | 9.4 | 84.46 |
| 314 | B30.5P84.5 | H-ZF7L | 30.5 | 96.38 | -22.579 | 2.8 | 84.46 |
| 315 | B16P85.2 | H-K9L | 15.6 | 121.47 | 13.48 | 4.2 | 85.20 |
| 316 | B16P85.2 | ZF13 | 16 | -13.48 | 29.089 | 2 | 85.20 |
| 317 | B27P86.4 | H-K9L | 27 | 56 | 41.8 | 5.5 | 86.44 |
| 318 | B27P86.4 | H-LAF4 | 27 | -41.8 | 93.5 | 1.5 | 86.44 |
| 319 | B25P89.7 | H-ZK6 | 25 | 62.907 | 19.873 | 8.65 | 89.70 |
| 320 | B25P89.7 | H-ZF4 | 25 | -19.873 | 99.1 | 2.85 | 89.70 |
| 321 | B22P90 | K9 | 22 | 50 | 38.74 | 4.5 | 89.98 |
| 322 | B22P90 | F4 | 22 | -38.74 | 177.5 | 1.5 | 89.98 |
| 323 | B22P93.6 | ZF2 | 22 | 168.93 | -47.53 | 2.5 | 93.57 |
| 324 | B22P93.6 | K9 | 22 | 47.53 | 51.38 | 7 | 93.57 |
| 325 | B32P93.6 | ZF2 | 32 | 168.93 | -47.53 | 2.5 | 93.57 |
| 326 | B32P93.6 | K9 | 32 | 51.38 | 47.53 | 7 | 93.57 |
| 327 | B33P93.9 | K9 | 33 | 50.23 | 50.23 | 7 | 93.86 |
| 328 | B33P93.9 | F4 | 33 | 248.9 | -50.23 | 2.5 | 93.86 |
| 329 | B20.7P95 | H-ZLAF50B | 20.5 | 36.73 | 36.73 | 4.07 | 95.00 |
| 330 | B20.7P95 | ZF4 | 20.7 | -36.73 | -51.24 | 1 | 95.00 |
| 331 | B21P95.6 | ZF7 | 21 | -49.2 | -19.055 | 2 | 95.55 |
| 332 | B21P95.6 | ZK9 | 20.8 | 19.055 | 19.055 | 7.5 | 95.55 |
| 333 | B30P96.3 | H-ZK10 | 30 | 48.31 | 51.24 | 17.7 | 96.30 |
| 334 | B30P96.3 | ZF7L | 30 | -51.24 | 1127.2 | 3 | 96.30 |
| 335 | B52P100 | H-K50 | 51.9 | 44.3 | 44.3 | 20.185 | 100.00 |
| 336 | B52P100 | H-ZF7LA | 52 | -44.3 | 1E+13 | 3.485 | 100.00 |
| 337 | B23P100.6 | ZK9 | 22.8 | 17.783 | 17.783 | 9.6 | 100.58 |
| 338 | B23P100.6 | ZF7 | 23 | -37.07 | -17.783 | 1.85 | 100.58 |
| 339 | B13P101.2 | H-ZK21 | 13 | 27.193 | 27.193 | 4.1 | 101.20 |
| 340 | B13P101.2 | ZF2 | 13 | -27.193 | -54.94 | 1.5 | 101.20 |
| 341 | B26P102 | H-K9L | 26 | 55.67 | 43.76 | 5 | 101.97 |
| 342 | B26P102 | H-F4 | 26 | -43.76 | 212.4 | 1.5 | 101.97 |
| 343 | B30P104 | H-ZF2 | 30 | -442.6 | -34.04 | 2 | 104.00 |
| 344 | B30P104 | H-K9L | 30 | 34.04 | 34.04 | 8.6 | 104.00 |
| 345 | B22P105 | H-ZF7 | 22 | -20.23 | -498.9 | 1.3 | 105.00 |
| 346 | B22P105 | H-LAK1 | 21 | 36.64 | 20.23 | 5.5 | 105.00 |
| 347 | B33.5P106.8 | BaF3 | 33.5 | 65.77 | 47.53 | 6.8 | 106.79 |
| 348 | B33.5P106.8 | ZF2 | 33.5 | 263 | -47.53 | 2.3 | 106.79 |
| 349 | B25P106.9 | ZF7 | 25 | -55.72 | -22.09 | 2 | 106.91 |
| 350 | B25P106.9 | ZK9 | 25 | 22.09 | 22.09 | 9.6 | 106.91 |
| 351 | B26.5P108 | K9 | 26.5 | 62.803 | 45.628 | 5 | 108.04 |
| 352 | B26.5P108 | F4 | 26.5 | -45.628 | 185.42 | 2 | 108.04 |
| 353 | B14P108.3 | H-ZF6 | 14 | -27.94 | -32.15 | 2 | 108.30 |
| 354 | B14P108.3 | H-K9L | 14 | 32.15 | 13.397 | 4.7 | 108.30 |
| 355 | B17P111.3 | H-KF6 | 17 | 25.75 | 44.5997 | 6 | 111.30 |
| 356 | B17P111.3 | ZF52 | 17 | -44.5997 | -178.5 | 1.5 | 111.30 |
| 357 | B34P112 | H-K9L | 34 | 81.85 | 42.36 | 7 | 112.00 |
| 358 | B34P112 | H-ZF1 | 34 | -42.36 | 111.17 | 2 | 112.00 |
| 359 | B13P116.4 | H-BAK6 | 12.85 | 70.6 | 42.88 | 5 | 116.40 |
| 360 | B13P116.4 | H-F4 | 13 | -42.88 | 318.9 | 2 | 116.40 |
| 361 | B44P117.6 | H-K9L | 44 | 71.2 | 57 | 10.2 | 117.58 |
| 362 | B44P117.6 | H-F4 | 44 | -57 | 196.855 | 2.5 | 117.58 |
| 363 | B32P118 | K9L | 32 | 67.45 | 50.12 | 6.8 | 118.03 |
| 364 | B32P118 | F4 | 32 | -50.12 | 210.9 | 2.4 | 118.03 |
| 365 | B33P118.1 | K9 | 33 | 65.46 | 48.19 | 6.9 | 118.14 |
| 366 | B33P118.1 | F1 | 33 | 248.9 | -48.19 | 2.3 | 118.14 |
| 367 | B26.5P119.4 | K9 | 26.5 | 89.26 | 40.18 | 5 | 119.37 |
| 368 | B26.5P119.4 | ZF10 | 26.5 | 99.08 | -40.18 | 2.4 | 119.37 |
| 369 | B44P119.7 | ZK3 | 44 | 88.72 | 72.11 | 8.1 | 119.65 |
| 370 | B44P119.7 | ZF3 | 44 | -72.11 | 199.99 | 3 | 119.65 |
| 371 | B29.5P119.7 | H-ZK2 | 29.5 | 31.41 | 45.29 | 7 | 119.68 |
| 372 | B29.5P119.7 | H-ZF4 | 29.5 | -45.29 | -90.16 | 2 | 119.68 |
| 373 | B40P120 | H-BAK6 | 40 | 77.208 | 54.089 | 8.2 | 120.00 |
| 374 | B40P120 | H-ZF2 | 40 | -54.089 | 216.123 | 3 | 120.00 |
| 375 | B50P120 | H-K9L | 50 | 75.283 | 55.735 | 15.3 | 120.00 |
| 376 | B50P120 | H-ZF2 | 50 | -55.735 | 151.85 | 4.7 | 120.00 |
| 377 | B32P121.5 | K9 | 32 | 70.96 | 50.82 | 6.3 | 121.51 |
| 378 | B32P121.5 | F4 | 32 | -50.82 | 203.91 | 2.4 | 121.51 |
| 379 | B22P122 | H-K51 | 22 | -36 | -23.88 | 1.06 | 122.00 |
| 380 | B22P122 | H-ZLAF50B | 21 | 23.88 | 75.34 | 4.29 | 122.00 |
| 381 | B13P125 | H-K9L | 13 | 86.1 | 45.39 | 3.3 | 125.00 |
| 382 | B13P125 | H-F4 | 13 | -45.39 | 143.88 | 1.5 | 125.00 |
| 383 | B23P125 | H-K9L | 23 | 86.1 | 45.39 | 3.3 | 125.00 |
| 384 | B23P125 | H-F4 | 23 | -45.39 | 143.88 | 1.5 | 125.00 |
| 385 | B43P126.7 | BaK7 | 43 | 65.31 | 65.31 | 9.1 | 126.65 |
| 386 | B43P126.7 | ZF2 | 43 | 907.8 | -65.31 | 2.9 | 126.65 |
| 387 | B32P127.6 | K9 | 32 | 40.09 | 40.09 | 9.6 | 127.62 |
| 388 | B32P127.6 | ZF2 | 32 | -40.09 | -409.3 | 2.8 | 127.62 |
| 389 | B43P131.3 | K9 | 43 | 60.51 | 65.46 | 9.1 | 131.29 |
| 390 | B43P131.3 | F4 | 43 | -65.46 | 990.8 | 2.9 | 131.29 |
| 391 | B32P131.3 | K9 | 32 | 77.98 | 53.95 | 7 | 131.34 |
| 392 | B32P131.3 | F2 | 32 | 215.8 | -53.95 | 3 | 131.34 |
| 393 | B37P131.3 | K9 | 37 | 77.98 | 53.95 | 7 | 131.34 |
| 394 | B37P131.3 | F2 | 37 | 215.8 | -53.95 | 3 | 131.34 |
| 395 | B38P132.8 | ZK3 | 38 | 98.63 | 74.47 | 6.5 | 132.83 |
| 396 | B38P132.8 | ZF3 | 38 | -74.47 | 214.8 | 2.8 | 132.83 |
| 397 | B38P137.3 | H-ZF72A | 38 | -25.704 | -60.05 | 5 | 137.30 |
| 398 | B38P137.3 | H-LAF1 | 38 | 60.05 | 32.137 | 18 | 137.30 |
| 399 | B49P137.5 | H-ZBAF50 | 49 | 94.5293 | 75.2924 | 10.5 | 137.50 |
| 400 | B49P137.5 | H-ZF7 | 49 | -75.292 | 351.19 | 3.5 | 137.50 |
| 401 | B44P137.6 | ZK3 | 44 | 103.02 | 75.86 | 8.1 | 137.61 |
| 402 | B44P137.6 | ZF3 | 44 | -75.86 | 216.8 | 3 | 137.61 |
| 403 | B52P140 | H-K9L | 52 | 89 | 67.38 | 11.5 | 139.95 |
| 404 | B52P140 | H-F4 | 52 | -67.38 | 209.947 | 2.5 | 139.95 |
| 405 | B42P142.2 | K9 | 42 | 83.623 | 61.66 | 7.6 | 142.18 |
| 406 | B42P142.2 | F4 | 42 | 239.9 | -61.66 | 2.3 | 142.18 |
| 407 | B43.2P143.2 | H-BAK2 | 43.1 | 96.51 | 53.8 | 8.8 | 143.20 |
| 408 | B43.2P143.2 | H-F4 | 43.2 | -53.8 | 210.2 | 3.7 | 143.20 |
| 409 | B42P145.5 | K9 | 42 | 86.21 | 61.24 | 7.9 | 145.48 |
| 410 | B42P145.5 | F4 | 42 | -61.24 | 234 | 3 | 145.48 |
| 411 | B18P147 | K9 | 18 | 35.24 | 67.76 | 3.4 | 147.01 |
| 412 | B18P147 | F1 | 18 | -67.76 | -87.1 | 1.5 | 147.01 |
| 413 | B38.8P148.7 | ZBAF2 | 38.684 | -377.89 | 45.491 | 7.239 | 148.70 |
| 414 | B38.8P148.7 | H-ZF3 | 38.811 | -45.491 | 72.009 | 5.207 | 148.70 |
| 415 | B42P148.7 | ZF2 | 42 | -65.16 | 199.53 | 2.6 | 148.75 |
| 416 | B42P148.7 | K9 | 42 | 89.13 | 65.16 | 8.6 | 148.75 |
| 417 | B35P150 | ZF11 | 35.5 | -280.5 | -39 | 2.2 | 149.84 |
| 418 | B35P150 | K9 | 35 | 39 | 39 | 9.2 | 149.84 |
| 419 | B30P150.4 | K9 | 30 | 44.691 | 28.07 | 9 | 150.37 |
| 420 | B30P150.4 | ZF3 | 30 | -28.07 | 380.2 | 3 | 150.37 |
| 421 | B42P150.4 | K9 | 42 | 89.26 | 61.57 | 8.2 | 150.42 |
| 422 | B42P150.4 | F2 | 42 | 246.6 | -61.57 | 3.8 | 150.42 |
| 423 | B15.2P151.8 | H-ZF7L | 15.2 | -21.8 | -10.33 | 1.5 | 151.79 |
| 424 | B15.2P151.8 | H-ZK9 | 15.2 | 10.33 | 12.75 | 7.1 | 151.79 |
| 425 | B32P152.3 | ZF7 | 32 | -80.17 | -30.62 | 2.5 | 152.28 |
| 426 | B32P152.3 | ZK9 | 32 | 30.62 | 30.62 | 11 | 152.28 |
| 427 | B51P152.7 | ZK3 | 51 | 106.66 | 91.41 | 10 | 152.72 |
| 428 | B51P152.7 | ZF4 | 51 | 279.3 | -91.41 | 4 | 152.72 |
| 429 | B17P155.8 | H-K9L | 17 | 32.5 | 39.686 | 3.3 | 155.80 |
| 430 | B17P155.8 | ZF7L | 17 | -39.686 | -312.6 | 1.5 | 155.80 |
| 431 | B17P155.8 | H-K9L | 17 | 32.5 | 39.686 | 3.3 | 155.80 |
| 432 | B17P155.8 | ZF7L | 17 | -39.686 | -312.6 | 1.5 | 155.80 |
| 433 | B44P156.7 | K9 | 44 | 159.59 | 55.72 | 8 | 156.73 |
| 434 | B44P156.7 | F4 | 44 | -55.72 | 122.46 | 3 | 156.73 |
| 435 | B24P157 | H-ZF7LA | 24 | -549.5 | -22.28 | 1.4 | 157.00 |
| 436 | B24P157 | H-LAK1 | 23 | 22.28 | 45.19 | 6 | 157.00 |
| 437 | B44P157.3 | FK61 | 44 | 86.21 | 86.21 | 7.7 | 157.33 |
| 438 | B44P157.3 | LAF4 | 44 | -86.21 | 210.9 | 2.6 | 157.33 |
| 439 | B42.5P160 | H-K9L | 42.46 | 107.586 | 63.3716 | 8.99 | 160.00 |
| 440 | B42.5P160 | H-F13 | 42.46 | -63.372 | 192.836 | 2.99 | 160.00 |
| 441 | B52P160.5 | K9 | 52 | 92.68 | 64.9 | 12 | 160.47 |
| 442 | B52P160.5 | F4 | 52 | -64.9 | 268.5 | 3.5 | 160.47 |
| 443 | B52P161 | BaK2 | 52 | 98.63 | 74.82 | 10 | 161.01 |
| 444 | B52P161 | ZF2 | 52 | 263 | -74.82 | 3.5 | 161.01 |
| 445 | B25.5P162.2 | ZF52 | 25.5 | -65.31 | -22.18 | 2 | 162.24 |
| 446 | B25.5P162.2 | ZK3 | 25.5 | 22.18 | 22.18 | 9.6 | 162.24 |
| 447 | B35.2P163.7 | H-ZF4 | 35.2 | -251.8 | -37.67 | 3.2 | 163.70 |
| 448 | B35.2P163.7 | H-K9L | 35.2 | 37.67 | 37.67 | 11 | 163.70 |
| 449 | B26.5P168 | ZF52 | 26.5 | -70.96 | -23.55 | 2 | 168.05 |
| 450 | B26.5P168 | ZK3 | 26.5 | 23.55 | 23.55 | 10 | 168.05 |
| 451 | B53P168.3 | K9 | 53 | 116.41 | 95.72 | 10 | 168.26 |
| 452 | B53P168.3 | F4 | 53 | 233.3 | -95.72 | 3.8 | 168.26 |
| 453 | B57.5P173 | H-K9L | 57.5 | 85.658 | 99.581 | 13 | 173.00 |
| 454 | B57.5P173 | H-ZF2 | 57.5 | -99.581 | 511.29 | 4 | 173.00 |
| 455 | B44P173.6 | H-ZF7LA | 44 | -154.29 | 1E+12 | 2.5 | 173.60 |
| 456 | B44P173.6 | H-ZLAF50B | 44 | 1E+13 | 74.85 | 6.91 | 173.60 |
| 457 | B44P173.6 | H-ZLAF50B | 44 | 1E+13 | 74.85 | 6.91 | 173.60 |
| 458 | B44P173.6 | H-ZF7LA | 44 | -154.29 | 1E+12 | 2.5 | 173.60 |
| 459 | B24P177 | ZF7 | 24 | -48.08 | -23.39 | 3 | 177.08 |
| 460 | B24P177 | ZK1 | 24 | 23.39 | 20.42 | 8.6 | 177.08 |
| 461 | B45P178 | FK61 | 45 | 97.1 | 97.1 | 7.6 | 178.10 |
| 462 | B45P178 | LAF4 | 45 | -97.1 | 239.9 | 3 | 178.10 |
| 463 | B24P180 | ZF6 | 24 | 177.83 | -76.03 | 2.2 | 179.95 |
| 464 | B24P180 | BAK7 | 24 | 76.03 | 150.31 | 3.6 | 179.95 |
| 465 | B21P180 | BAF5 | 21 | 60.39 | -23.99 | 1.5 | 179.98 |
| 466 | B21P180 | BAK2 | 21 | 23.99 | -297.9 | 4 | 179.98 |
| 467 | B38.8P180 | H-K9L | 38.684 | 116.078 | 60.427 | 10.668 | 180.00 |
| 468 | B38.8P180 | F3 | 38.811 | -60.427 | 217.805 | 5.588 | 180.00 |
| 469 | B44P181.5 | K9 | 44 | 52.7 | 40.9 | 15.2 | 181.46 |
| 470 | B44P181.5 | ZF2 | 44 | -691.8 | -40.9 | 5 | 181.46 |
| 471 | B38.8P184.4 | H-ZF3 | 38.811 | 187.096 | -41.148 | 3.937 | 184.40 |
| 472 | B38.8P184.4 | ZBAF2 | 38.684 | 41.148 | 181.35 | 8.382 | 184.40 |
| 473 | B52P187 | K9 | 52 | 106.61 | 80.17 | 10 | 187.06 |
| 474 | B52P187 | F4 | 52 | 340.4 | -80.17 | 4.5 | 187.06 |
| 475 | B34P189.3 | K9 | 34 | 139 | 59.288 | 5.9 | 189.26 |
| 476 | B34P189.3 | F4 | 34 | -59.288 | 185.5 | 3 | 189.26 |
| 477 | B35P190 | BAF3 | 35 | 39.26 | 564.9 | 8.74 | 190.00 |
| 478 | B35P190 | ZF3 | 35 | 92.9 | -39.26 | 4.36 | 190.00 |
| 479 | B52P192 | K9 | 52 | 115.08 | 83.75 | 10 | 191.95 |
| 480 | B52P192 | ZF2 | 52 | -83.75 | 257 | 3.5 | 191.95 |
| 481 | B52P195.8 | K9 | 52 | 116.95 | 83.623 | 10 | 195.83 |
| 482 | B52P195.8 | F4 | 52 | -83.623 | 316.2 | 4.5 | 195.83 |
| 483 | B52P195.9 | K9 | 52 | 116.41 | 81.85 | 10 | 195.93 |
| 484 | B52P195.9 | F2 | 52 | 326.6 | -81.85 | 4.5 | 195.93 |
| 485 | B28.6P199.6 | H-K9L | 28.422 | 58.191 | 119.05 | 5.588 | 199.60 |
| 486 | B28.6P199.6 | H-ZF3 | 28.55 | -119.05 | -304.8 | 3.048 | 199.60 |
| 487 | B28P200 | H-ZPK1 | 27.8 | 48.691 | 80.988 | 5 | 200.00 |
| 488 | B28P200 | H-TF3L | 28 | -48.691 | -218.78 | 1 | 200.00 |
| 489 | B50P200 | H-BAK7 | 50 | 127.02 | 96.83 | 10 | 200.00 |
| 490 | B50P200 | ZF11 | 50 | -96.83 | 373.385 | 3.73 | 200.00 |
| 491 | B72P200 | H-K9L | 72 | 118.81 | 96.37 | 17.94 | 200.00 |
| 492 | B72P200 | H-ZF2 | 72 | -96.37 | 288.97 | 6 | 200.00 |
| 493 | B62P200.8 | BAK7 | 62 | 118.278 | 97.74 | 12 | 200.78 |
| 494 | B62P200.8 | ZF2 | 62 | -97.74 | 537 | 4.5 | 200.78 |
| 495 | B58P204 | ZK3 | 58 | 130.02 | 99.08 | 9.8 | 204.09 |
| 496 | B58P204 | ZF3 | 58 | 425.264 | -99.08 | 4.2 | 204.09 |
| 497 | B57.5P206.8 | H-BAK2 | 57.5 | 118.163 | 84.129 | 11.8 | 206.80 |
| 498 | B57.5P206.8 | F4 | 57.5 | -84.129 | 500.12 | 4.6 | 206.80 |
| 499 | B75P210 | H-F4 | 74.5 | 119.234 | 119.234 | 15 | 210.00 |
| 500 | B75P210 | H-ZF7L | 75 | -119.234 | 724.16 | 10 | 210.00 |
| 501 | B9P214 | ZF11 | 9 | 11.5 | 7.5 | 9.6 | 214.00 |
| 502 | B9P214 | ZF7L | 9 | -7.5 | -10.559 | 1.5 | 214.00 |
| 503 | B12P214.2 | H-ZF10 | 12 | 26.047 | 17.067 | 3.6 | 214.20 |
| 504 | B12P214.2 | H-LAF62 | 12 | -17.067 | -32.315 | 3 | 214.20 |
| 505 | B32P226.6 | K9 | 32 | 46.77 | 38.63 | 10 | 226.58 |
| 506 | B32P226.6 | F2 | 32 | -128.2 | -38.63 | 4 | 226.58 |
| 507 | B62P234 | K9 | 62 | 138.04 | 99.08 | 11.5 | 234.04 |
| 508 | B62P234 | F6 | 62 | 376.7 | -99.08 | 5.5 | 234.04 |
| 509 | B32P240 | ZF2 | 32 | -85.9 | -34.28 | 2.8 | 239.81 |
| 510 | B32P240 | K9 | 32 | 34.28 | 34.28 | 10.8 | 239.81 |
| 511 | B34P246.3 | ZF3 | 34 | -114.82 | -45.08 | 2.4 | 246.32 |
| 512 | B34P246.3 | K9 | 34 | 45.08 | 37.41 | 9 | 246.32 |
| 513 | B46P247.8 | BAK2 | 46 | 116.95 | 116.95 | 6.8 | 247.82 |
| 514 | B46P247.8 | ZF11 | 46 | -116.95 | 907.8 | 3.2 | 247.82 |
| 515 | B17.5P248 | ZK9 | 17.4 | 12.972 | 12.972 | 8 | 248.04 |
| 516 | B17.5P248 | ZF7 | 17.5 | -17.989 | -12.972 | 1.5 | 248.04 |
| 517 | B46P263.7 | K9 | 46 | 115.35 | 72.11 | 8.5 | 263.70 |
| 518 | B46P263.7 | ZF1 | 46 | -72.11 | 579.4 | 4.5 | 263.70 |
| 519 | B68P290 | H-K9L | 67.9 | 176.66 | 124.2 | 9.8 | 290.00 |
| 520 | B68P290 | ZF1 | 67.94 | -124.2 | 406.99 | 4.4 | 290.00 |
| 521 | B60P325 | H-BAK2 | 60 | 148.082 | 167.157 | 11 | 325.00 |
| 522 | B60P325 | H-ZF2 | 60 | -167.16 | 3175 | 5 | 325.00 |
| 523 | B60.3P341.9 | F3 | 60.274 | 711.2 | -101.22 | 6.35 | 341.90 |
| 524 | B60.3P341.9 | H-K9L | 60.173 | 101.219 | 169.52 | 10.668 | 341.90 |
| 525 | B63P350 | K9 | 63 | 193.64 | 153.46 | 10 | 350.03 |
| 526 | B63P350 | F5 | 63 | -153.46 | 691.8 | 4.5 | 350.03 |
| 527 | B23.5P359.7 | ZF52 | 23.5 | -40.36 | -19.248 | 2 | 359.69 |
| 528 | B23.5P359.7 | ZK3 | 23.5 | 19.248 | 19.248 | 9.2 | 359.69 |
| 529 | B35P365 | H-ZF11 | 35 | -92.39 | -40.1 | 2.7 | 365.00 |
| 530 | B35P365 | H-K9L | 38 | 40.1 | 38.654 | 12.8 | 365.00 |
| 531 | B17P379.3 | ZK9 | 16.9 | 16.255 | 11.695 | 7.5 | 379.26 |
| 532 | B17P379.3 | ZF7 | 17 | -28.31 | -11.695 | 2.5 | 379.26 |
| 533 | B42P384.3 | H-K9L | 42 | 184.5 | 78.27 | 5.1 | 384.35 |
| 534 | B42P384.3 | ZF2 | 42 | -78.27 | 375 | 3.58 | 384.35 |
| 535 | B58P390.7 | K9 | 58 | 137.4 | 122.46 | 10 | 390.67 |
| 536 | B58P390.7 | ZF10 | 58 | -122.46 | 3945 | 4.5 | 390.67 |
| 537 | B72P394.4 | K9 | 72 | 204.6 | 170.89 | 10 | 394.38 |
| 538 | B72P394.4 | F4 | 72 | -170.89 | 1003 | 5.5 | 394.38 |
| 539 | B17.5P419 | ZF7 | 17.5 | -28.31 | -11.695 | 2 | 419.08 |
| 540 | B17.5P419 | ZK9 | 17.5 | 16.255 | 11.695 | 7.4 | 419.08 |
| 541 | B49P483.6 | K9 | 49 | 116.41 | 65.31 | 9.5 | 483.62 |
| 542 | B49P483.6 | F4 | 49 | -116.41 | -116.41 | 3 | 483.62 |
| 543 | B68P500 | K9 | 67.9 | 304.429 | 213.315 | 8 | 500.00 |
| 544 | B68P500 | ZF1 | 67.9 | -213.32 | 705.555 | 4 | 500.00 |
| 545 | B44P532.7 | K9 | 44 | 76.56 | 394.5 | 5.7 | 532.71 |
| 546 | B44P532.7 | ZF13 | 44 | -394.5 | -180 | 532.71 | |
| 547 | B20.5P560.7 | ZK3 | 20.4 | 18.03 | 18.03 | 7.6 | 560.70 |
| 548 | B20.5P560.7 | ZF52 | 20.5 | -37.07 | -18.03 | 1.7 | 560.70 |
| 549 | B52P566 | K9 | 52 | 72.6 | 137.95 | 10 | 565.97 |
| 550 | B52P566 | ZF1 | 52 | -137.95 | -137.95 | 2 | 565.97 |
| 551 | B22P591 | H-FK61 | 21.8 | 45.544 | 52.73 | 5.3 | 591.00 |
| 552 | B22P591 | H-LAF4 | 22 | -52.73 | -152.89 | 5.3 | 591.00 |
| 553 | B46P631.7 | K9 | 46 | 92.68 | 391 | 5.5 | 631.70 |
| 554 | B46P631.7 | ZF12 | 46 | -391 | -219.424 | 2.9 | 631.70 |
| 555 | B46P653.7 | K9 | 46 | 178.65 | 59.38 | 9.6 | 653.73 |
| 556 | B46P653.7 | ZF2 | 46 | -178.65 | -98.82 | 2.6 | 653.73 |
| 557 | B66P657 | H-K9L | 65.5 | 69.308 | 212.783 | 11.8 | 657.00 |
| 558 | B66P657 | H-ZF7LA | 66 | -212.78 | -161.64 | 2 | 657.00 |
| 559 | B57P723 | H-K9L | 57 | 132.56 | 88.014 | 10 | 723.00 |
| 560 | B57P723 | H-ZF2 | 57 | -88.014 | -826.09 | 3.1 | 723.00 |
| 561 | B77.5P765.2 | K9 | 77.5 | 110.976 | 203.91 | 14.5 | 765.24 |
| 562 | B77.5P765.2 | F4 | 77.5 | -203.91 | -203.91 | 5 | 765.24 |
| 563 | B87P797.9 | K9L | 87 | 421.733 | 144.585 | 13 | 797.85 |
| 564 | B87P797.9 | ZF1 | 87 | -421.73 | -306.97 | 6 | 797.85 |
| 565 | B63P800 | H-BAK8 | 63 | 548.847 | 339.583 | 5 | 800.00 |
| 566 | B63P800 | H-ZF10 | 63 | -339.58 | 1248.95 | 5 | 800.00 |
| 567 | B51.5P900.8 | H-K9L | 51.5 | 147.63 | 63.83 | 9.2 | 900.80 |
| 568 | B51.5P900.8 | H-ZF2 | 51.5 | -63.83 | 1E+14 | 2.5 | 900.80 |
| 569 | B16P954 | H-LAK11 | 16 | 19.235 | 19.235 | 4.6 | 954.00 |
| 570 | B16P954 | H-ZF5 | 16 | -19.235 | -19.657 | 6.1 | 954.00 |
| 571 | B13P1123 | H-QF50 | 13 | -19.724 | -19.724 | 4.7 | 1123.00 |
| 572 | B13P1123 | H-ZK7 | 13 | 19.724 | 25.505 | 6 | 1123.00 |
| 573 | B13P1123 | H-QF50 | 13 | -19.724 | -19.724 | 4.7 | 1123.00 |
| 574 | B13P1123 | H-ZK7 | 13 | 19.724 | 25.505 | 6 | 1123.00 |
| 575 | B46P4908 | H-ZF6 | 46 | 168.14 | -42.27 | 3 | 4908.00 |
| 576 | B46P4908 | H-QK3 | 45.8 | 42.27 | 244.89 | 9.34 | 4908.00 |
Copyright © SiChuan JUKA Optical Technology All Rights Reserved | Sitemap
