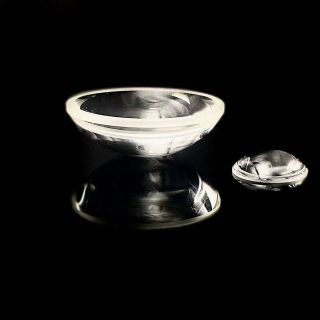

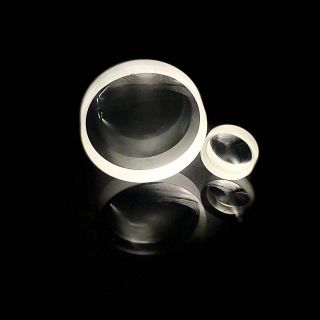

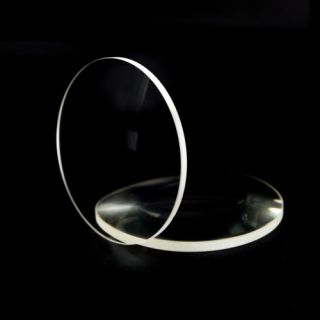

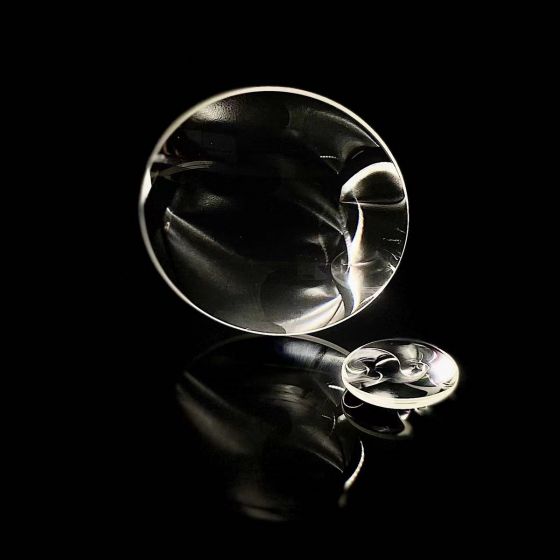

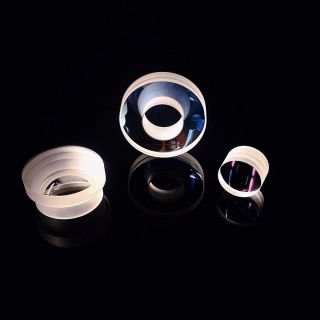

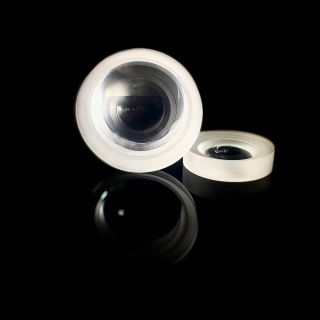

Biconvex Lens

Profilometer Inspection Report

Each Oplens Optics lens is carefully tested to all applicable standards using state-of-the-art metrology equipment. We inspect and carefully inspect every product before it leaves the factory, so you can have complete confidence that the optics you order will be the best fit for your application.

Parameters

Our factory biconvex lens have a diameter tolerance of < + 0.00/ - 0.02mm and a flatness of < λ/5 @ 633nm. Focal length tolerance can be achieved < ± 1%

Material	Optical Glass
Surface Flatness	< λ/5 @ 633nm
Scratch/Dig	< 40/20 (both sides)
Eccentricity	≤ 1arcmin
Focal Length Tolerance	< ± 1%
Diameter Tolerance	< + 0.00/ - 0.02mm
Thickness Tolerance	< ± 0.05
Clear Aperture	≥ 95% of diameter
Coating	AR OR BBAR
Diameter Range	5~260mm

Stock Biconvex Lens:

Serial No.	Parts No.	Material	DIA	R1	R2	T_C	F
1	S5.4P3.5	H-ZF7LA	5.4	12.19	3.4	2.63	3.50
2	S10P5.6	ZF14	10	11.324	8.083	3.37	5.60
3	S8P6.7	H-ZLAF68B	8	6.11	104.23	2.2	6.70
4	S10P7	H-ZF7LA	10	10.49	10.49	3.5	7.00
5	S9P8	ZF11	9	11.5	7.5	9.6	8.00
6	S14P19	H-K9L	14	32.15	13.397	4.7	9.00
7	S10P10.3	H-K9L	10	9.817	9.817	4.6	10.30
8	S14P10.4	H-ZF62	14	28.64	12.972	6	10.40
9	S11P10.4	H-LAK53A	11	27.589	10.5	3.1	10.40
10	S9.5P10.5	JGS1	9.5	9.09	9.09	3.5	10.50
11	S14P11.1	H-LAF3	14	10.56	30.62	5	11.10
12	S11P12	H-K9L	11	11.695	11.695	4	12.00
13	S12.5P12.5	H-K9L	12.5	12.1	12.1	4.5	12.50
14	S12P12.6	ZF6	12	591.82	9.62	4	12.60
15	S6.8P13.1	K9	6.8	13.183	13.183	2	13.11
16	S11P13.3	JGS1	11	7.34	26.52	6	13.50
17	S10P13.6	H-LAK1	10	19.724	15.346	3.5	13.60
18	S14P13.8	H-LAK3	14	28.31	14.997	5.5	13.80
19	S12P13.8	ZF1	12	17.014	17.014	4.5	13.80
20	S8P13.9	H-ZBAF21	8	12.039	55.72	2.32	13.90
21	S9P13.9	H-LAK7	9	19	19	4	13.90
22	S16.6P13.9	H-QF50	16.6	17.76	13.135	5.53	13.90
23	S8P13.9	H-ZBAF21	8	12.039	55.72	2.32	13.90
24	S11.7P14.2	ZK3	11.7	38.965	10.284	3.3	14.16
25	S12.5P14.2	H-K51	12.5	14.011	14.011	4.6	14.20
26	S12P14.5	H-K9L	12	36.526	9.005	4.5	14.50
27	S10P15	H-K9L	10	64	9.29	3	15.00
28	S13P15.6	H-ZK2	13	11.06	42.875	5	15.60
29	S14P15.9	H-ZK3	14	31.35	12.702	3.9	15.86
30	S11P15.9	H-LAK7	11	13	77	4	15.90
31	S15P16.4	H-ZBAF21	15	28.81	19.099	3.68	16.40
32	S11P16.5	JGS1	11	73.3	9.067	5	16.50
33	S15P17	H-ZK11	15	22.92	21.15	3.73	17.00
34	S12P17.2	H-ZK9A	12	49.493	13.381	2.5	17.20
35	S14.2P17.4	ZK3	14.2	12.702	48	3.7	17.44
36	S14.8P17.6	ZK3	14.8	13.381	40.8	4	17.59
37	S15P17.8	H-ZK11	15	22.92	21.15	3.73	17.80
38	S19.8P17.9	K9	19.8	22.887	13.765	7.7	17.90
39	S16.5P18	ZK9	16.5	34.28	15.704	4.5_-0.1	17.98
40	S14.8P18.1	ZK3	14.8	17.3	25.638	3.8	18.13
41	S22P18.8	H-LAK3	22	16.144	92.68	6.5	18.80
42	S11P18.9	H-ZK9A	11	18.11	31.47	3.1	18.90
43	S15.5P19.3	K9	15.5	26.12	15.136	4.5	19.28
44	S12P19.3	ZF6	12	19.04	57.53	3	19.30
45	S16P19.5	H-ZK9	16	14.369	67.975	4	19.48
46	S13.5P19.6	BaK8	13.5	70.63	13.062	3.6	19.55
47	S13.4P19.8	JGS1	13.41	15.812	19.59	4.3	19.80
48	AS30P20	H-F4	32	69.2	20.83	12.5	20.00
49	S15P20.5	H-ZK10L	15	17.192	43.96	4.69	20.50
50	S14P20.5	H-ZK10L	14	17.192	43.96	4.69	20.50
51	S16.5P20.9	ZK9	16.5	76.91	15.241	4	20.85
52	S16P20.9	H-ZK6	16	46.88	16.827	4	20.90
53	S16P21.1	H-LAF3B	16	21.59	54.45	3.5	21.10
54	S14.6P21.2	H-K9L	14.6	23.01	19.59	4.6	21.20
55	S18P21.8	H-ZK3	18	53.85	16.385	4.5	21.84
56	S12.6P22	H-K9L	12.6	22.28	22.28	2.5	22.00
57	S20P22.5	H-ZLAF68	20	38.55	38.55	5	22.50
58	S20P23	H-ZK10	20	15.62	145.273	7	23.00
59	S10P23.3	QK3	10	45.16	15	2.36	23.27
60	S21.5P23.8	H-ZK9	21.5	41.84	21.6	5.5	23.75
61	S20.6P23.9	H-F4	20.6	16.482	131.2071	4.91	23.90
62	S15P24.2	N-LAK12	15	42.87	25.66	4	24.20
63	S21.5P24.3	H-ZK9	21.5	70.18	18.65	5.5	24.33
64	S18P24.7	H-ZLAF50B	18	33.525	46.6	3.3	24.70
65	S12.7P25	K9	12.7	25.28	25.28	3.52	25.00
66	S20P25.2	H-LAK3	20	36.81	36.81	4	25.20
67	S13P25.5	H-K9L	13	50	17.498	3	25.50
68	S17.8P25.8	H-ZK50	17.8	34.848	26.993	5	25.80
69	S25P26.8	BAK2	25	32.884	23.621	7.8	26.80
70	S21P26.9	ZK9	21	41.8	26.4	5.5	26.91
71	S16P27	H-LAK53A	16	29.404	63.187	3	27.00
72	S18.5P27.2	H-LAF53	18.5	62.95	29.17	3.7	27.20
73	S22.5P27.3	ZK9	22.5	20	100	5.5	27.35
74	S15.2P27.4	H-ZK3	15.2	19.01	100	3	27.37
75	S13P27.5	H-LAK51	13	37.76	37.76	2.8	27.50
76	S25.5P27.7	ZBaF3	25.5	100	21.68	6.3	27.69
77	AS28P21	H-FK61	30	17.97	69.2	12	28.00
78	S18.6P28	H-LAF3B	18.6	27.616	75.01	7.5	28.00
79	S32P28.1	H-LAF54	32	23.27	574.701	8	28.10
80	S17.2P28.3	H-QF50	17.2	37.24	28.39	3.8	28.30
81	S30ASEFL28.4	H-ZK11	30	37.2	39.72	8.2	28.40
82	S22P28.9	ZF6	22	159.673	24.077	6	28.90
83	S15P29.6	H-K9L	15	17.378	117.49	4.5	29.60
84	S26P29.7	H-LAF53	26	67.3	31.62	6.2	29.70
85	S12P30.2	H-ZK6	12	65.3	25.27	3.5	30.20
86	S16P31	H-LAK50A	16	44.957	35.739	3	31.00
87	S12.8P31.2	H-K51	12.8	45.39	25	2.8	31.20
88	S18.5P31.9	H-LAF53	18.5	24.21	1288.2	3.2	31.90
89	S33P32	K9	33	66.68	20.7	11.5	32.00
90	S14P32.2	H-LAF10	14	50	50	3	32.20
91	S20.9P32.7	H-K9L	20.9	21.16	77.39	5	32.70
92	S38P32.8	H-LAF1	38	60.05	32.137	18	32.80
93	S20P33.1	H-QK3L	20	21.003	60.873	8	33.10
94	S24P33.7	H-ZK6	24	108.85	24.85	6.85	33.70
95	S27P33.9	BAK4	27	45.92	29.89	6.8	33.85
96	S23P34.2	H-ZK7	23	312.6	22.13	4.5	34.20
97	S26P34.3	ZK7	26	128.53	24.66	6	34.26
98	S23P34.8	H-ZBAF21	23	38.092	71.062	3.7	34.80
99	S46ASEFL34.8	H-F4	46	32.83	95.72	15	34.80
100	S21P35	ZK7	21	263	23.17	4	34.92
101	S32P35	BAF1	32	146.62	21.57	9.03	35.00
102	S34.5P35.2	H-LAF53	34.5	85.51	36.06	8.6	35.20
103	S17.5P35.3	ZK9	17.5	80.17	29.72	3	35.32
104	S45P35.6	H-QF50	45	57.905	28.5	18	35.60
105	S10P35.8	C7980 1D	10	34.94	30.16	3	35.80
106	S15P36	H-LAK51	15	54.28	45.64	2.6	36.00
107	S30P36.2	H-ZK11	30	45.84	43.96	6.913	36.20
108	S26.2P36.3	H-K9L	26.2	36.05	36.05	8	36.30
109	S22P37.3	H-ZK11	22	248.9	26.12	5	37.30
110	S20P38.4	H-LAF53	20	59.98	52.97	3.8	38.40
111	S18P39.2	H-ZK6	18	27.42	190.11	3	39.20
112	S27P39.6	H-BAF8	27	241.5	26.42	5.5	39.60
113	S52P39.9	H-K50	51.9	44.3	44.3	20.18	39.90
114	S31P40	H-ZBAF16	31	34.78	107.15	5.85	40.00
115	S40P40	H-K9L	40	39.11	39.11	12.5	40.00
116	S20P21	K9	20	22.647	18.679	6.7	40.00
117	S25P40.3	H-K9L	25	40.74	40.74	5.4	40.30
118	S33.5P41.7	H-ZK11	33.5	54.089	49.5	7.5	41.70
119	S13P41.9	H-ZPK1	13	50	50	9.2	41.90
120	S20P42.3	JGS1	20	25.73	73.76	4.92	42.30
121	S30P42.9	H-ZK10	30	48.31	51.24	17.7	42.90
122	S24P43	H-K9L	24	30.35	78.471	5	43.00
123	S26P43.3	K9	26	101.86	27.93	5.8	43.26
124	S11P43.3	H-ZF2	11	57.84	57.84	2	43.30
125	S27P43.3	H-ZK10	27	52.917	52.917	5	43.30
126	S20P43.4	JGS1	20	30.316	54.91	4.8	43.40
127	S17.98P43.4	H-LAK54	17.98	41.69	131.83	2.2	43.40
128	S28.5P45	H-ZK10L	28.47	40.2311	87.47	5.64	45.00
129	S15P45.1	H-LAK10	15	57.844	57.844	4.5	45.10
130	S24P45.4	H-BAF8	24	44.06	77.62	5	45.40
131	S12P45.4	H-K9L	12	12.271	34.478	3.9	45.40
132	S41P45.8	H-K9L	41	26.01	210.63	15	45.80
133	S26P46	K9	26	109.65	29.79	6	46.00
134	S26.5P46.3	H-ZK6	26.5	56.02	56.02	4.7	46.30
135	S20P47	H-LAK10	20	60.63	60.63	3.5	47.00
136	S25P47.4	H-K9L	25	48.08	48.08	5.2	47.39
137	S38P47.5	H-ZF3	38	74.26	60.81	10	47.50
138	S40P47.5	H-ZBAF52	40	59.05	65	8.5	47.50
139	S16P48.3	H-ZK2	16	106.41	38.46	4	48.30
140	S36.5P48.4	H-K9L	36.5	48.519	48.519	8.7	48.42
141	S35.8P48.5	H-LAK52	35.8	52.5	101.378	8	48.50
142	S28P26.8	K9	28	30.13	23.01	9	48.70
143	S32P49.6	k9	32	122.46	31.77	8	49.60
144	S20P49.8	H-K9L	20	50.645	50.645	5	49.80
145	S40P50.3	K9	40	50	50	11	50.26
146	S28P52	H-ZF50	28	220.85	46.437	4.2	52.00
147	S20.5P52.8	H-ZK3	20.5	1536.2	31.7	4.4	52.80
148	S23.5P53	H-LAK3	23.5	46.88	229.1	4.2	53.00
149	S30P54	H-K9L	30	23.88	144.21	8.1	54.00
150	S32P57.3	H-ZK1	32	166.7	39.99	5.61	57.30
151	S28P58.2	K9	28	185.35	35.549	6	58.26
152	S30P58.7	H-K9L	30	59.7	59.7	5.6	58.70
153	S21P59.9	H-ZK11	21	48.91	170.61	3.3	59.90
154	S30P60	H-ZK10	30	51.24	122.46	14	60.00
155	S33P60.2	K9	33	65.61	57.02	7.2	60.24
156	S42P60.9	K9	42	61.38	61.38	9	60.91
157	S32P61	H-K9L	32	59.11	64.46	8.27	61.00
158	S30P61	QK3	29.55	524.8	31.41	5.8	61.00
159	S36P62.1	K9	36	63	63	6.4	62.09
160	S29P62.9	H-ZBAF21	29	51.591	370.793	5.3	62.90
161	S36P63.1	K9	36	63.97	63.97	7.1	63.14
162	S53P63.5	H-ZK9A	53	47.4	210.771	11.5	63.50
163	S35.2P63.7	H-K9L	35.2	64.6	64.6	7	63.70
164	S40P64.8	H-K9L	40	65.46	65.46	8.5	64.80
165	S49P65.3	H-ZBAF50	49	94.5293	75.2924	10.5	65.30
166	S25.2P65.4	K9	25.2	332.5	37.3	9.2	65.45
167	S44P67.1	H-ZF52A	44	105.68	117.49	10.2	67.10
168	S24P70	H-ZK11	24	193.2	57.544	5	70.00
169	S34P70.2	H-ZBAF21	34	100.46	100.46	5	70.20
170	S13P71.7	H-ZBAF52	13	95.72	95.72	2	71.70
171	S30P72.8	BAF5	30	56.597	194.673	3.6	72.80
172	S20P72.9	H-LAF53	20	65.31	320.6	3.2	72.90
173	S30P73.2	H-ZF1	30	83.211	108.398	3.5	73.20
174	S25P73.7	C7980 1D	25	51.338	95.94	5	73.70
175	S30P74.3	JGS1	30	53.12	90.95	7	74.30
176	S20P76	H-ZK2	20.00	88.04	88.04	3	76.00
177	S29P76	H-K9L	29	45.352	282.319	4.34	76.00
178	S48P77.6	H-ZK11	48	97.499	97.499	8.3	77.60
179	S30P80.7	H-K9L	30	82.632	82.632	4.5	80.70
180	S48P81	ZF13	48	72.0634	517.7159	7	81.00
181	S20P81.8	JGS1	20	74.34	74.34	4.5	81.80
182	S33P82.5	K9	33	126.77	63.24	6	82.53
183	S42P83.5	H-QK3L	42	79.992	79.992	8.76	83.50
184	S25P83.9	JGS1	25	106.17	59.57	4	83.90
185	S15P31.6	H-ZLAF55A	15	293.951	28.847	3	84.20
186	S42P84.5	JGS1	42	76.15	76.15	8	84.50
187	S68P84.9	H-FK61	68	66.98	103.8	18	84.90
188	S46P87.2	K9	46	115.35	72.11	8.5	87.20
189	S59P91	H-K9L	59	91.69	91.69	13.5	91.00
190	S30P92.6	JGS1	30	66.37	113.805	7	92.60
191	S57.5P92.9	H-BAK2	57.5	118.163	84.129	11.8	92.90
192	S42.9P98.4	H-K9L	42.9	60.78	300.07	6.29	98.40
193	S50P99.2	JGS1	50	70.96	120.371	11	99.20
194	S25P102.3	H-ZF3	25	132	163.6	3.5	102.30
195	S37P103	H-ZF6	37	154.13	154.13	6	103.00
196	S90P104.5	H-K9L	90	103.74	103.74	24.1	104.50
197	S82P106	H-K9L	82	118.81	96.37	17.94	106.00
198	S28.6P108.9	H-K9L	28.55	111.607	111.607	5.588	108.90
199	S72.5P110	H-ZBAF3	72.5	142.04	142.04	12	110.00
200	S72P110	H-ZBAF3	72	142.04	142.04	12	110.00
201	S25P111.3	H-ZF10	25	280	105	4	111.30
202	S30P113.8	JGS1	30	132.5	85.44	5.93	113.80
203	S30P117	H-ZK11	30	112.98	216.519	4.5	117.00
204	S82P121.7	H-K9L	81.97	250.74	82.125	16.44	121.70
205	S52P133.7	K9	52	246.6	94.84	7.2	133.63
206	S52P134.3	BaK2	52	210.9	109.4	6.3	134.33
207	S58P136.7	QK3	58	86.64	280.5	7.6	136.72
208	S70P137	H-K9L	70	148.615	131.02	14	137.00
209	S88.5P139.3	H-ZK10L	88.5	170.61	170.61	14.7	139.30
210	S46P141.3	K9	46	274.2	98.82	6	141.33
211	S44P142.3	H-F1	44	170.61	170.61	5.9	142.30
212	S46P146	BAK7	46	86.21	2249	5.2	146.06
213	S44P148.7	H-K9L	44	86.66	663.7	4.91	148.70
214	S38.5P151	H-K9L	38.5	155.34	155.34	4.6	151.00
215	S51P157.8	H-FK61	51	177.8	138.33	7.5	157.80
216	S54P171.9	BAK7	54	101.86	2377	6.5	171.90
217	S102P175.2	H-K9L	102	242.7	140.6	19	175.20
218	S102P175.2	H-K9L	102	242.7	140.6	19	175.20
219	S81P177.6	H-K9L	81	181.59	181.59	11.5	177.60
220	S53P181.7	K10	53	323.6	131.83	6.7	181.68
221	S72P190.6	K9	72	128.82	405.5	10	190.57
222	S69P191.3	H-K9L	69	120.417	540.479	7.73	191.30
223	S47P193.2	H-K50	47	201	201	5	193.20
224	S68P205.5	H-F4	68	252.5	252.5	12	205.50
225	S68P205.5NEW	F4	68	252.5	252.5	12	205.50
226	S42P210.6	H-K9L	42	514	137.6	5	210.58
227	S65P212	H-K9L	65	705.555	128.2	12.44	212.00
228	S116P229	H-K9L	116	233.9	233.9	17.1	229.00
229	S50P244FS1	JGS1	50	132	732	4.5	244.00
230	S50P244FS1	JGS1	50	132	732	4.5	244.00
231	S52P246.2	H-K9L	52	270.4	238.508	6	246.20
232	S81P275	ZK9	81	186.21	2040	9.35	275.48
233	S75P288	H-K9L	75	910.46	176.93	10	288.00
234	S85P300	JGS1	85	713.392	165.442	12	300.00
235	S50P300UV	JGS1	50	165	732	4.5	300.00
236	S50P300UV	JGS1	50	165	732	4.5	300.00
237	S59P307.5	H-K9L	59	391	266.16	7	307.50
238	S50P490	JGS1	50	275.005	1229.995	4.5	490.00
239	S85P500	JGS1	85	1209.27	275.253	12	500.00
240	S83.5P503.8	K9	83.5	293.8	2249	7.5	503.81

Profilometer Inspection Report Parameters

Applications of Biconvex lens/double convex lens:

What kind of biconvex lens can we customize？

Stock Biconvex Lens:
