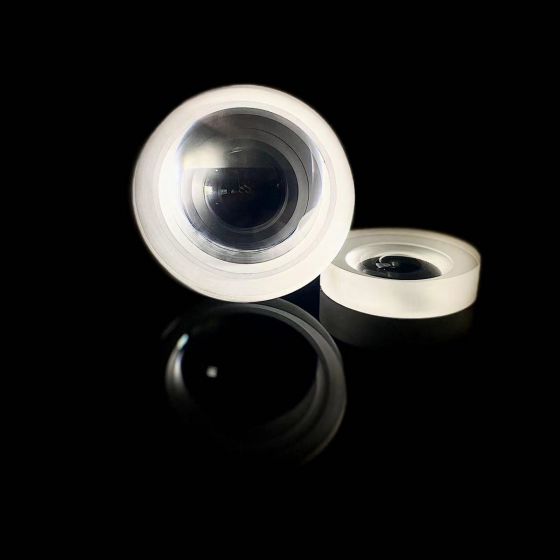

Plano-Concave Lens

A plano-concave lens is a lens that has a flat surface on one side and a concave surface on the other side. The focal length of a plane-concave lens is negative, allowing the beam to diverge. Therefore, it can be used in optical system for beam expansion, light projection or to increase focal length.

Oplens can not only customize the plano-concave lens with common materials of N-BK7 (Shott) and fused silica, but also customize the plano-concave lens of any glass material.

You are welcome to contact us for customized plano-concave lenses.

Inquire Now Next Product

Parameters

Material:

Surface Flatness:

Scratch/Dig:

Eccentricity:

Focal Length Tolerance

Diameter Tolerance:

Thickness Tolerance:

Clear Aperture:

Coating:

Diameter Range:

Optical Glass

< λ/5 @ 633nm

< 40/20 (both sides)

≤ 1arcmin

< ± 1%

< + 0.00/ - 0.02mm

< ± 0.05

≥ 95% of diameter

AR OR BBAR

5~260mm

Stock Products:

Serial No.	Parts No.	Material	DIA	R1	R2	T_C	F
1	S20N2902	H-K9L	20	∞	-1500	3	-2902.00
2	S20N1935	H-K9L	20	∞	-1000	3	-1935.00
3	S20N1548	H-K9L	20	∞	-800	3	-1548.00
4	S58N1161R	H-K9L	58	∞	-600	10	-1161.00
5	S100R1000	H-K9L	100	∞	-2000	12	-1000.00
6	S20N967	H-K9L	20	∞	-500	3	-967.00
7	S12.7R300	JGS1	12.7	-600	∞	3	-300.00
8	S33N300	H-K9L	33	∞	-155	2.5	-299.92
9	S12.7R250	JGS1	12.7	-500	∞	3	-250.00
10	S99N167	H-ZF11	99	-116.83	∞	3.5	-167.00
11	S46N155	JGS1	46	∞	-70.96	3	-155.00
12	S30.3N141.6	ZK2	30.3	∞	-82.6	2	-141.56
13	S42N100	H-K9L	42	∞	-51.87	2	-100.00
14	S25N100PCC	H-K9L	25	∞	-51.68	3.5	-100.00
15	S25N100PCCFS	JGS1	25	∞	-45.84	2.5	-100.00
16	S50N100PCC	H-K9L	50	∞	-51.68	5	-100.00
17	S12N82.5	H-K9L	12	∞	-42.63	1.5	-82.50
18	S42N75.9	JGS1	42	∞	-34.78	3	-75.90
19	S25.4R75	JGS1	25.4	-150	∞	3	-75.00
20	S20N72.7	JGS1	20	∞	-33.3328	4	-72.70
21	S15N69.8	H-K9L	15	∞	-36.07	4.2	-69.80
22	S20N69.1	JGS1	20	∞	-31.688	3	-69.10
23	S12N58.9	C7978	12	-27	∞	2	-58.90
24	S58N58.4	ZBaF5	58	∞	-39.17	2	-58.37
25	S52N55	H-ZF7LA	52	-44.3	∞	3.485	-55.00
26	S22N52.2	H-K9L	22	∞	-27	2	-52.20
27	S25N50PCCFS	JGS1	25	∞	-22.92	2	-50.00
28	S25N50	JGS1	25	∞	-22.89	3	-50.00
29	S25.4N50	JGS1	25.4	∞	-23	2	-50.00
30	S22.5R45	SI	22.5	∞	-90	4.3	-45.00
31	S45N43.7	H-ZF7LA	44.98	-35.149	∞	2.5	-43.70
32	S52N43.7	H-ZF7LA	51.98	-35.149	∞	2	-43.70
33	S12N39.6	C7978	12	-18.155	∞	2	-39.60
34	S17N34.4	HWB850	17	∞	-18.42	1.5	-34.40
35	S10N30.1	JGS1	10	∞	-13.81	2	-30.10
36	S24N29.4	ZF2	24	∞	-19.8	4.1	-29.43
37	S20N28.9	H-ZF7LA	20	∞	-23.55	1.4	-28.90
38	S22N27	B270	21.9	∞	-14.12	4.1	-27.00
39	S22N27NEW	B270	21.9	∞	-14.12	4.1	-27.00
40	S12N26	H-K9L	12	∞	-13.4	1.4	-26.00
41	S32N23.2	H-ZF7LA	32	∞	-18.7	8.05	-23.20
42	S11N22.7	K9L	11	∞	-11.695	1	-22.65
43	S9N20.9	H-K9L	9	-10.8	∞	1.4	-20.90
44	S28N19.5	H-ZF3	28	∞	-13.964	14	-19.50
45	S25.4R19SI	SI	25.4	∞	-38.1	3.18	-19.00
46	S12.7R16.8	JGS1	12.7	-33.624	∞	3.4	-16.80
47	S12N16.6	HWB850	12	∞	-8.3	3	-16.60
48	S19N16.5	H-K9L	19	∞	-8.5	2	-16.50
49	S19N16.5	H-K9L	19	∞	-8.5	2	-16.50
50	S30N15.6	H-ZF7LA	30	-12.706	∞	1.2	-15.60
51	S23N15.1	H-ZF7LA	23	-12.134	∞	1.2	-15.10
52	S10N13.3	C7978	10	-6.111	∞	2	-13.30
53	S19N12.7	ZF6	19	∞	-9.615	2	-12.70
54	S13N12.4	H-ZK2	13	-7.238	∞	3	-12.40
55	S14N11.6	H-LAF3	14	∞	-8.6	2	-11.60
56	S12N11.2	H-ZF7LA	12	∞	-9	2	-11.20
57	S3N5.9	K9	3	-3.05	∞	3	-5.90
